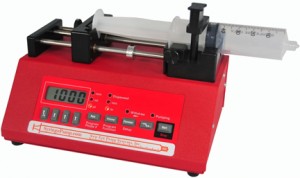

Model: NE-1000
Description:
- Holds 1 Syringe up to 60 cc
- (Glass or stainless steel syringes larger than 20mL may require Anti-siphon Modification Kit. Please call 631-249-1392 or email info@syringepump.com for more information).
- Infusion rates from 0.73 µL/hr (1 cc syringe) to 2100 ml/hr (60 cc syringe)
- Easy-to-use keypad interface
- Space Saving Chassis: Foot print size of only 5 3/4″ x 8 3/4″
- Won’t take up unnecessary space on your laboratory or production bench
- Includes all the advanced functions and programming features of the NE-1000 family
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
Features of the NE-1000 Family of Syringe Pumps:
- Fully programmable; automation capable
- Operates stand-alone or from a computer
- Infusion and withdrawal
Example Flow Rates NE-1000:
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
| Syringe Size | Maximum Rate | Minimum Rate |
| 0.5 µL | 25.49 µL/hr | 0.001 µL/hr |
| 1 mL | 52.86 mL/hr | 0.727 µL/hr |
| 3 mL | 223.8 mL/hr | 3.076 µL/hr |
| 5 mL | 372.5 mL/hr | 5.119 µL/hr |
| 10 mL | 607.6 mL/hr | 8.349 µL/hr |
| 20 mL | 966.2 mL/hr | 13.28 µL/hr |
| 30 mL | 1260 mL/hr | 17.32 µL/hr |
| 60 mL | 2120 mL/hr | 29.1 µL/hr |
| 140 mL | 3470 mL/hr | 47.7 µL/hr |
High pressure notes:
The NE-1000 produces about 15 lbs of linear force at top speed and about 35 lbs at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughly produce about 30 psi.
