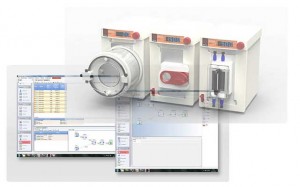

Asia Modules

Asia is a modular system. All the Asia modules can be purchased separately and arranged in any fashion to add new functionalities to an existing system. Your system evolves with your needs.Watch our new videos to see the wide range of flow chemistry modules and reactors available:

Sample Introduction

Asia systems can operate in continuous production mode where reagents flow through the chemically resistant pumps or it can operate in small-scale synthesis mode where reagents can automatically be injected through sample loops.

Asia Pressurized Input Store
This module pressurizes four bottles with an inert gas enabling the use of air sensitive reagents and eliminates bubble formation when pumping.
Asia Pump (2 Channels, No Syringes)Two extremely chemically resistant continuous flow pumps deliver ultra smooth flow from 1µl/min to 10ml/min each. Rated 20 bar (300psi) with integrated PTFE pressure sensor.
Asia Reagent InjectorTwo injection valves with injection volumes of 1ml, 5ml or 10ml which can be controlled manually or fully automated.

Flow Reactors

Asia offers a wide range of reactor sizes in both solution phase and solid phase chemistry for reaction optimization or preparative synthesis.

Asia Glass Microreactors

Designed specifically for flow chemistry, Asia microreactors offer excellent chemical resistance, high pressure, wide temperature range, high visibility and rapid mixing. Available in 62.5 μl, 250μl or 1ml.

Asia Tube Reactors

Available in PTFE or Stainless Steel and in sizes of 4ml or 16ml, these reactors are ideal for scale up applications.

Asia Solid Phase Reactors

Designed for the use of solid phase reagents, catalysts and scavengers. These clip onto the Asia Heater.

Temperature Controllers

Asia offers heating and cooling of microreactors using the climate controller and a flexible high temperature heater that can accept clip-in adaptors for solid phase (column) reactors, large scale tube reactors or glass microreactors.

Asia Chip Climate Controller

This Peltier based system enables glass microreactors to be cooled or heated from -15°C to + 150°C without the need for a circulator or cold water supply.

Asia Heater

This module has adaptors that can be changed in seconds to heat glass microreactors, tube reactors or solid phase reactors. Temperature range from room temperature to 250°C.

Post Reaction

To enable super heating, the pressure controller is located after the flow reactor. Other post reaction options include aqueous work-up and/or on-line sampling of the reaction

Asia FLLEX

The Flow Liquid Liquid EXtraction (FLLEX) offers continuous flow aqueous work up. The advanced membrane technology separates an extremely broad range of two phase mixtures.

Asia Pressure Controller

To enable ultra fast reaction rates, the pressure controller automatically regulates a laboratory gas supply to pressurize the flowing reaction up to 20bar (300psi).

Asia Sampler and Dilutor

This module automatically takes a 5μl sample from the flowing reaction, dilutes it and flows it into a UPLC/LCMS system allowing on line analysis of every reaction.

Product Collection

Asia allows manual collection, automated collection of one reaction or total collection of multiple experiments, even without a PC.

Asia Product Collector

Controlled by the Asia Syringe Pump, the Product Collector enables waste to be diverted and can be used to automatically collect one reaction product, or manually collect many samples.

Asia Automated Collector

Controlled by the Asia Syringe Pump or Asia Manager PC software, the Automated Collector enables multiple reactions to be collected in a separate vials or vessels, with waste automatically diverted.

Automation

Choose the Asia 110, 120 or 130 for manually controlled systems. For automation from the Asia Pump choose the Asia 210, 220 or 310 systems. For full PC control of multi-reactor systems, choose the Asia 230, 320 or 330 systems.

Asia Automator

Connect all the modules to the Automator to allow the Asia Syringe Pump or PC Software to control all the modules to automate reactions.

Asia Manager PC Software

Connect the Asia Automator to a PC and use the Asia Manager software to fully automate all experiments with data logging and graphing.

Asia Modules by System Table

Manual Flow Chemistry Auto Flow Chemistry Process Optimization
Module asia 110 asia 120 asia 130 asia 210 asia 220 asia 230 asia 310 asia 320 asia 330
Pressurized Input Store Option Option Standard Standard Standard Standard Standard Standard Standard
Pump (2 Channels, No Syringes) Standard Standard Standard Standard Standard 2 Parts Standard Standard 2 Parts Standard 2 Parts Standard
Reagent Injector Option Option Standard Option Standard 2 Parts Standard Standard 2 Parts Standard 2 Parts Standard
Microreactor Chip Standard 2 Parts Standard 3 Parts Standard Standard 2 Parts Standard 4 Parts Standard 3 Parts Standard 4 Parts Standard 6 Parts Standard
Tube Reactor Option Standard 2 Parts Standard Option 2 Parts Standard 2 Parts Standard Option 4 Parts Standard 4 Parts Standard
Solid Phase Reactor Option Standard Standard Option Standard Standard Option Standard Standard
Chip Climate Controller Standard Standard Standard Standard Standard Standard Standard Standard Standard
Heater Option Standard Standard Option Standard Standard Option Standard Standard
Heater Chip Adaptor Option Standard Standard Option Standard Standard Option Standard Standard
Heater Solid Phase Adaptor Option Standard Standard Option Standard Standard Option Standard Standard
Heater Tube Adaptor Option Standard Standard Option Standard Standard Option Standard Standard
FLLEX Option Option Option Option Option Standard Option Option Standard
Pressure Controller Standard Standard Standard Standard Standard Standard Standard Standard Standard
Asia Sampler and Dilutor Option Option Option Option Option Option Option Option Standard
Product Collector Option Option Standard Standard Standard Standard Option Option Option
Automated Collector Option Option Option Option Option Option Standard Standard Standard
Automator Option Option Option Standard Standard 2 Parts Standard Standard 2 Parts Standard 2 Parts Standard
Asia Manager PC Software Option Option Option Option Option Standard Option Standard Standard

Standard standardOption option
