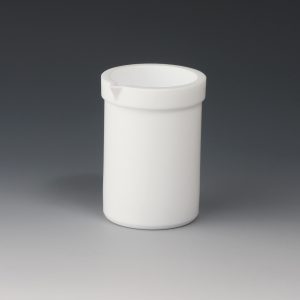

BOLA BEAKERS, PTFE
Material: PTFE
Chemical resistance: +++ universal
Temperature resistance: from -200°C to +250°C
[tabs][tab title=”PRODUCT DESCRIPTION”]
Thick-walled, smooth interior surface, reinforced upper rim, with spout. Optional PTFE lid with centering shoulder is available.
[/tab][/tabs]

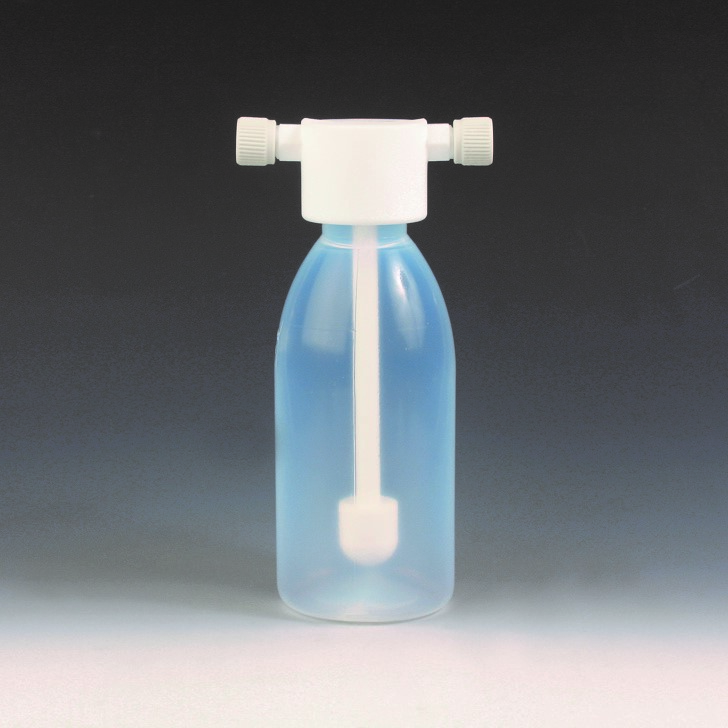

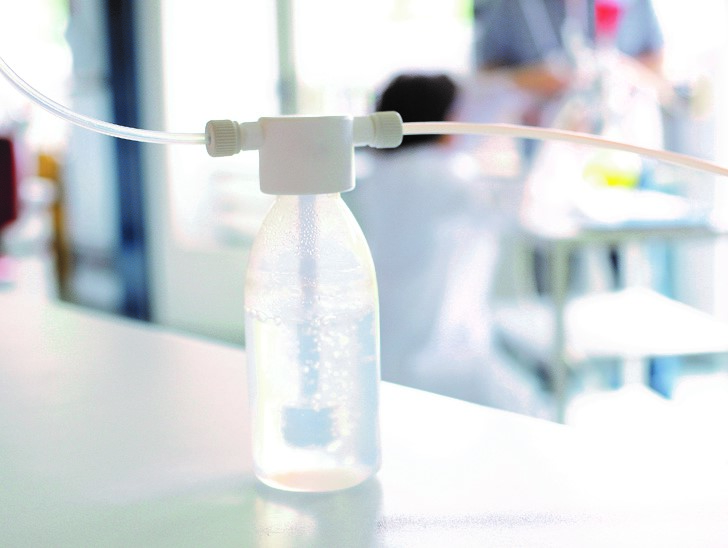

BOLA SCRUBBER BOTTLES, PFA
Material: PFA
Chemical resistance: +++ universal
Temperature resistance: from -200°C to +250°C
Transparency: transparent
Pressure: no pressure
[tabs][tab title=”PRODUCT DESCRIPTION”]Bottle made of PFA. PTFE top with two threaded connections. The standard PTFE frit has a pore size of approx. 3 µm and is screwed on the riser tube with an M8x1 thread. It can be exchanged with the PTFE gas distributor with fine bores (Cat. No. N 1501-16) which needs a lower primary pressure.
[/tab] [tabs][tab title=”PRODUCT ADVANTAGES”]» transparent
» unbreakable
» frit easily exchangeable
[/tab] [tab title=”APPLICATIONS”]Flow rate using the standard gas distributor and at the stated system pressure:
A118-01:
System pressure 0,1 bar: 12,5 l/h
System pressure 0,3 bar: 67,5 l/h
System pressure 0,6 bar: 140,0 l/h
A 118-02:
System pressure 0,1 bar: 7,5 l/h
System pressure 0,3 bar: 30 l/h
System pressure 0,6 bar: 80 l/h
A 118-03:
System pressure 0,1 bar: 7,5 l/h
System pressure 0,3 bar: 37,5 l/h
System pressure 0,6 bar: 80 l/h

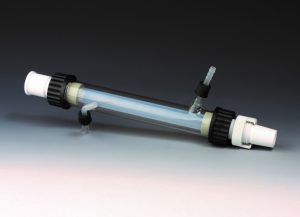

[/tab][/tabs]BOLA LIEBIG CONDENSERS “TRANSPARENT”, PTFE
Material: PFA, PTFE
Chemical resistance: +++ universal
Temperature resistance: from -20°C to +250°C
Transparency: transparent
[tabs][tab title=”PRODUCT DESCRIPTION”]Thin-walled cooling tube made of translucent and gastight PFA, cooling ja-cket made of borosilicate glass with hose connectors made of PP and nuts for connection of cooling water, ground joint cone and socket size 29 made of PTFE. The distillate is only exposed to PFA/PTFE. Integrated special nut (Safe-Lab) for easy locking and unlocking of the ground joint.
[/tab][/tabs]
